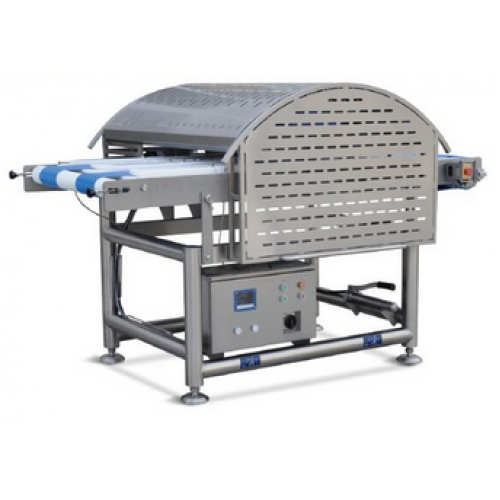

Horizontal Chicken Breast Slicing Machine

‹

›

Horizontal Chicken Breast Slicing Machine

Type: Double lane slicer
U/M: Each
Stock: On Order
Shipping Dimension: 95 X 58 X 62
Shipping Weight: 1,323 lbs
HTS Code:8438.50.00
CM: 4993

Financing Available

Note: Shipping to be determined

* Cutting Tool Configuration:

Metal Guide ( Applies Only for Multi Cut):

* Height of Guiding bar:

* CM-4993 Power Option:

* CM-4993 Extra Optional Accessories:
Extra Metal Guide 3mm (Set of 4 pcs)
Extra Metal Guide 4mm (Set of 4 pcs)
Extra Metal Guide 5mm (Set of 4 pcs)
Extra Upper Belt (Sold as Set 2 pcs)
Extra Lower Belt (Sold as Set 2 pcs)
Extra Guiding Bar 20 or 25mm ( Set of 4 pcs)
Extra Supporting Guide Comb (Set of 4 pcs)

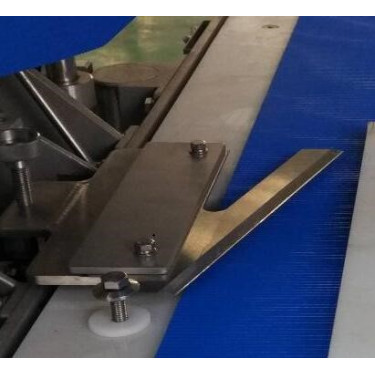

Extra Butterfly Cutting Knife (1 pcs)
Extra Horizontal Multilayer Blades (Set of 20 pcs)

Brochure

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Horizontal Chicken Breast Slicing Machine

Type: Double lane slicer
U/M: Each
Stock: On Order
Shipping Dimension: 95 X 58 X 62
Shipping Weight: 1,323 lbs
HTS Code:8438.50.00
CM Product Code: 4993

Financing Available

Note: Shipping to be determined

* Cutting Tool Configuration:
--Both lanes multilayer horizontal cutting
--Both lanes butterfly cutting
--One lane butterfly - One lane multilayer

Metal Guide ( Applies Only for Multi Cut):
--3 mm
--4 mm
--5 mm

* Height of Guiding bar:
--20 mm
--25 mm

* CM-4993 Power Option:
--220V 60Hz 3Ph
--480V 60Hz 3Ph

Automatic Horizontal Chicken Breast Slitter Slicing Machine

Ability to do multiple slices with horizontal cutting, which is also capable of butterflying.

Suitable for fresh poultry

Applications and Features:

High cutting precision
Multiple slices in single cut with a minimum thickness of 3mm and a maximum thickness of 50mm.
Through blade cassette changing
Switch between chicken breast slicing function and the butterflying function
Cutting thickness can be adjusted easily and quickly.
Floating upper belt, wide application for different precut thicknesses.
Multilayer cutting of different thicknesses.
Double feeding operation, high yield, 120 pieces/min.
Quality module type mesh belt, long life guaranteed.
SIEMENS electrical parts and CE approved safety service.
Made in stainless steel and engineering plastic, easy to clean and HACCP standard.
Easy operation and low maintenance cost.

Technical Parameters:

Belt Width	2 x 156 mm
Belt Speed	3~15m/min
Cutting Speed	120 pcs/min (Dual Lane)
Max Product width Input	140 mm
Max Product Height Input/Output	Based on Height of Guiding Bar + 5mm of product height
Minimum Cutting Thickness	3 mm
Maximum Cutting Thickness	Depends on metal guide combination (see brochure)
Power	480V - 60Hz - 3PH / 220V 60Hz 3PH
Overall Dimension	1780 x 1150 x 1430 mm

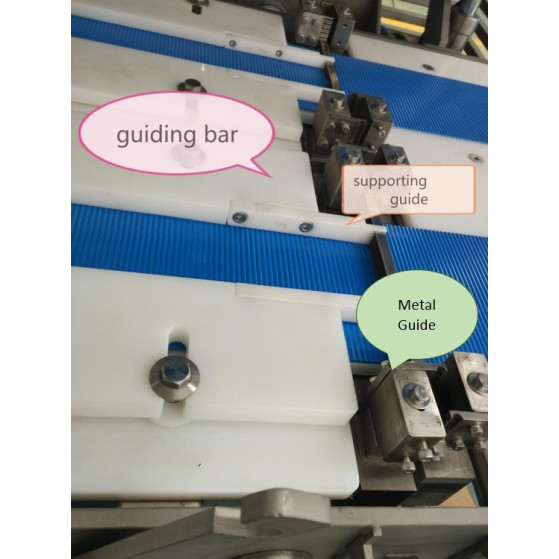

Metal Guide Combination Chart Number of horizontal multilayer blades are based on height of guiding bar. Tip: Product should always be 5mm higher than guiding bar.
Height of Guiding bar	3mm Metal guide	4mm Metal Guide	5mm Metal Guide
20mm	No. of blades - 6	No. of blades - 5	No. of blades - 4
25mm	No. of blades - 8	No. of blades - 6	No. of blades - 5

Parts from well-known International Suppliers

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Automatic Horizontal Chicken Breast Slitter Slicing Machine

Ability to do multiple slices with horizontal cutting, which is also capable of butterflying.

Suitable for fresh poultry

Applications and Features:

High cutting precision
Multiple slices in single cut with a minimum thickness of 3mm and a maximum thickness of 50mm.
Through blade cassette changing
Switch between chicken breast slicing function and the butterflying function
Cutting thickness can be adjusted easily and quickly.
Floating upper belt, wide application for different precut thicknesses.
Multilayer cutting of different thicknesses.
Double feeding operation, high yield, 120 pieces/min.
Quality module type mesh belt, long life guaranteed.
SIEMENS electrical parts and CE approved safety service.
Made in stainless steel and engineering plastic, easy to clean and HACCP standard.
Easy operation and low maintenance cost.

Technical Parameters:

Belt Width	2 x 156 mm
Belt Speed	3~15m/min
Cutting Speed	120 pcs/min (Dual Lane)
Max Product width Input	140 mm
Max Product Height Input/Output	Based on Height of Guiding Bar + 5mm of product height
Minimum Cutting Thickness	3 mm
Maximum Cutting Thickness	Depends on metal guide combination (see brochure)
Power	480V - 60Hz - 3PH / 220V 60Hz 3PH
Overall Dimension	1780 x 1150 x 1430 mm

Metal Guide Combination Chart Number of horizontal multilayer blades are based on height of guiding bar. Tip: Product should always be 5mm higher than guiding bar.
Height of Guiding bar	3mm Metal guide	4mm Metal Guide	5mm Metal Guide
20mm	No. of blades - 6	No. of blades - 5	No. of blades - 4
25mm	No. of blades - 8	No. of blades - 6	No. of blades - 5

Parts from well-known International Suppliers
