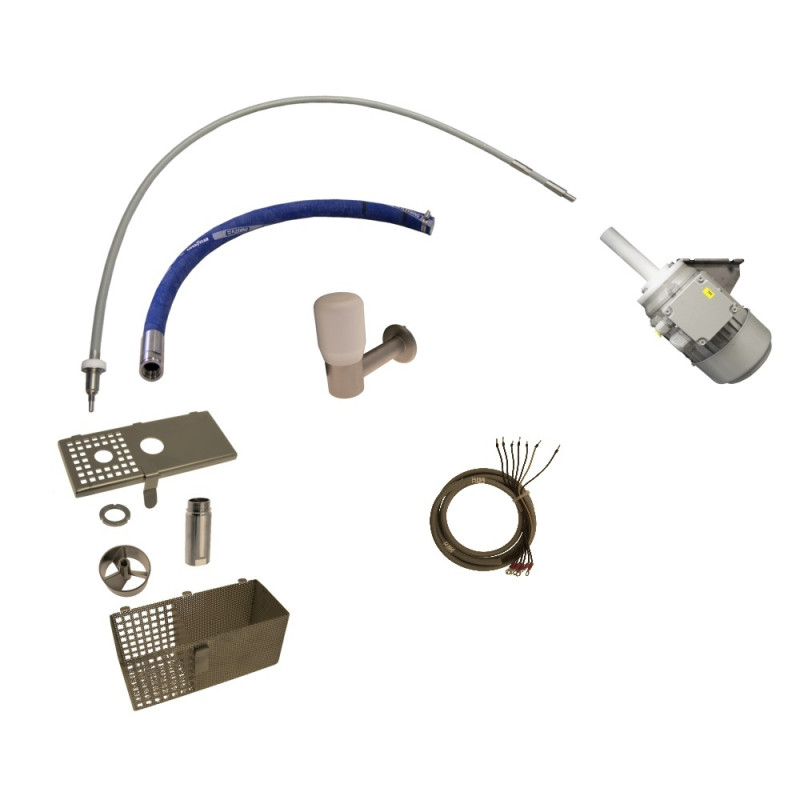

Brine mixer / suction intake Assembly Ruhle IR56 Injector
Pos No. | Part no. | Description | Add Info | Required | |
1 | F41671 | Basket - mesh | IR 56 | 1 | |
2 | 105921 | drive | IR 56 | 1 | |
3 | 107613 | Suction hose | IR 28/56 | 1 | |
4 | F240643 | Tube | Ø 32 x Ø 40 x 100 | 1 | |
5 | F240915 | Nut | M 26 x 1,5 x Ø 37 x 5 | 1 | |
6 | F29077 | Agitator | Ø 58.9 x Ø 66 x 30 | 1 | |
7 | 105800 | Shaft | IR 56 | 1 | |
8 | F440923 | Lid | IR 56 | 1 | |
9 | F22888 | Washer | DIN125 A 8,4 | 2 | |
10 | F20259 | Hexagonal nut | DIN934 M 8 | 2 | |
11 | F21260 | Spring lock washer | DIN127 B 8 | 2 | |
12 | 105854 | Housing | IR 28/56 | 1 | |
13 | F20258 | Washer | DIN125 A 6,4 | 3 | |
14 | F24031 | Spring lock washer | DIN127 B 6 | 3 | |
15 | F20203 | Hexagonal nut | DIN934 M 6 | 3 | |
16 | 106115 | Cable for mixer drive | IR 56 Facelift | 1 |
