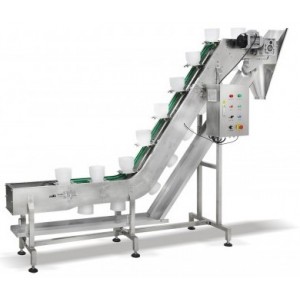

Bowl Type Conveyor

Ships from: FOB Brampton, ON Canada
U/M: Each
Stock: On Order
HTS Code:8428.39.00.00
CM: 7153

Financing Available

Note: Shipping to be determined

* Bowl Volume:
0.8L - Standard
1.4L
2.5L

* Power Option:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Location: FOB Brampton, ON Canada
U/M: Each
Stock: On Order
HTS Code:8428.39.00.00
CM Product Code: 7153

Financing Available

Note: Shipping to be determined

* Bowl Volume:
0.8L - Standard
1.4L
2.5L

* Power Option:
--220V 60Hz 3Ph
--220V 60hz 1Ph

Applicable for lift-conveying of solid, granular, small-sized products, and more often for secondary lifting solution due to field space limitation.

Main Function and Features:

Able to perform in continuous or intermittent conveyance and support other feeding equipment.
Bowl made of food grade PP material and has the ability to be quickly removed from the machine for cleaning.
Able to achieve second feeding (need to adjust the timing)
Conveying speed is adjustable.
Even when the bowl is in an inclined position, it can still be kept level and the product will not overflow.
Able to connect with a rotary packaging machine to achieve solid & liquid mixed product packaging.

Technical Parameters:

Contents	Specifications
Body Material	SUS304
Bowl Volume	0.8 L / 1.4 L / 3 L
Power Supply	220V 60hz 3Ph / 220V 60hz 1Ph
Conveying Capacity	Variable speed control
Machine Dimension	1450 mm or per customer requirement

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description Videos

Applicable for lift-conveying of solid, granular, small-sized products, and more often for secondary lifting solution due to field space limitation.

Main Function and Features:

Able to perform in continuous or intermittent conveyance and support other feeding equipment.
Bowl made of food grade PP material and has the ability to be quickly removed from the machine for cleaning.
Able to achieve second feeding (need to adjust the timing)
Conveying speed is adjustable.
Even when the bowl is in an inclined position, it can still be kept level and the product will not overflow.
Able to connect with a rotary packaging machine to achieve solid & liquid mixed product packaging.

Technical Parameters:

Contents	Specifications
Body Material	SUS304
Bowl Volume	0.8 L / 1.4 L / 3 L
Power Supply	220V 60hz 3Ph / 220V 60hz 1Ph
Conveying Capacity	Variable speed control
Machine Dimension	1450 mm or per customer requirement
