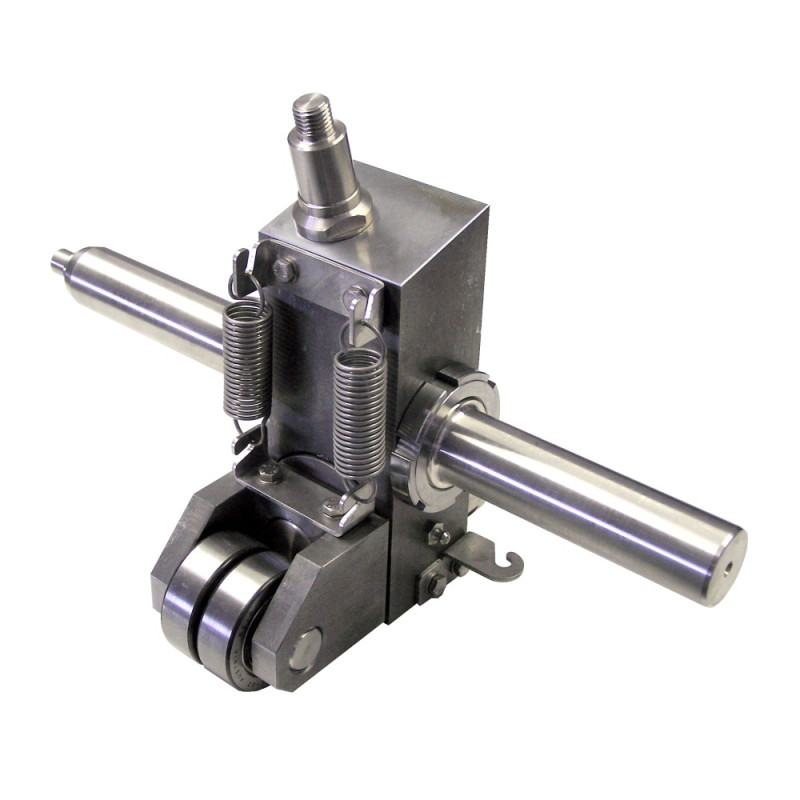

Block Exploded View for Ruhle SR2 Dicer

Pos No.	Part No.	Description	Add Info	Required
1	F447114	Block	SR 2 Turbo	1
2	F41387	Fork	SR 2 / SR 2 T / SR 3	1
3	F27442	Sealing ring	Ø 54 x Ø 64 x 5,5	2
4	F23387	Axial-Rillenkugellager	DIN711 51207	2
5	F27455	Disc	Ø 35 x Ø 75 x 3	1
6	F26854	Shaft	Ø 45 x 414	1
7	F27456	Grooved nut	DIN1804 M 45 x 1.5 x Ø 70 x 12	1
8	F26469	Needle bearing	DIN617 - RNA4907	2
9	F27448	Roller	305705 C-2Z	2
10	F26862	Disc	Ø 25,2 x Ø 35 x 3	3
11	F26860	Shaft	Ø 30 x 95	1
12	F27406	Bracket	40 x 40 x 25 x 2,5	1
13	F26857	Bracket	69 x 22,5 x 22 x 2,5	1
14	F20685	Hexagonal Bolt	DIN933 M 6 x 10	6
15	F28836	Spring	d 2 x Ø 22 x 70,8	2
