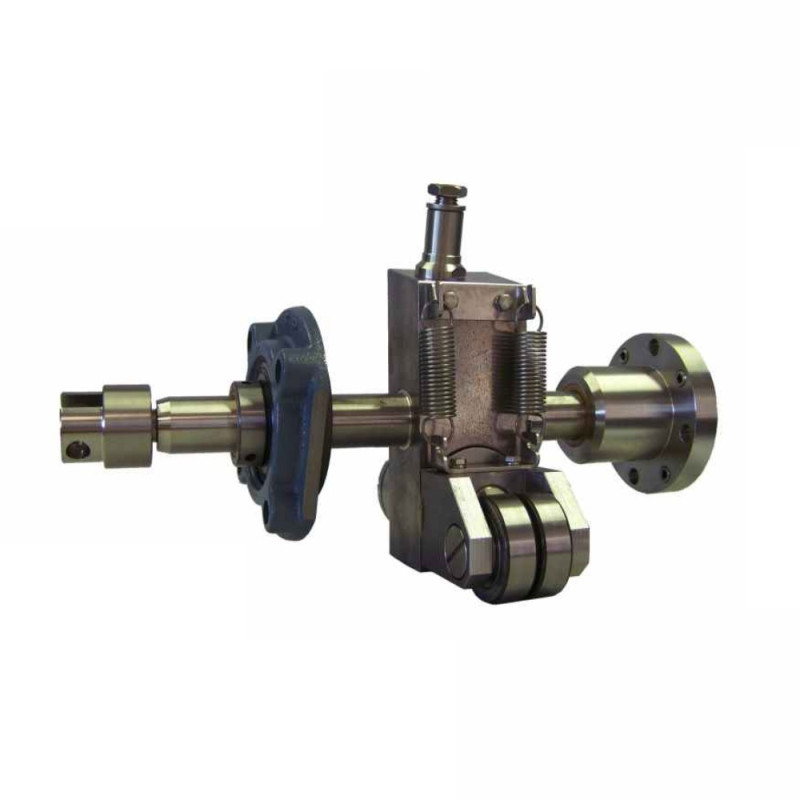

Block Exploded View SR2 Dicer No. 435

Type: F441852
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 895

* Block Exploded View SR2-Turbo No. 435:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Block Exploded View SR2 Dicer No. 435

Type: F441852
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 895

* Block Exploded View SR2-Turbo No. 435:
--F447114 Block
--F41387 Fork
--F27442 Sealing ring
--F23387 Axial-Rillenkugellager
--F27455 Scheibe
--F26854 Shaft
--F27456 Grooved nut
--F26469 Needle bearing
--F27448 Roller
--F26862 Disc
--F26860 Shaft
--F27406 Bracket
--F26857 Bracket
--F20685 Sechskantschraube
--F28836 Spring

Block Exploded View for Ruhle SR2 Dicer No. 435

Pos No.	Part No.	Description	Add Info	Required
1	F447114	Block	SR 2 Turbo	1
2	F41387	Fork	SR 2 / SR 2 T / SR 3	1
3	F27442	Sealing ring	Ø 54 x Ø 64 x 5,5	2
4	F23387	Axial-Rillenkugellager	DIN711 51207	2
5	F27455	Disc	Ø 35 x Ø 75 x 3	1
6	F26854	Shaft	Ø 45 x 414	1
7	F27456	Grooved nut	DIN1804 M 45 x 1.5 x Ø 70 x 12	1
8	F26469	Needle bearing	DIN617 - RNA4907	2
9	F27448	Roller	305705 C-2Z	2
10	F26862	Disc	Ø 25,2 x Ø 35 x 3	3
11	F26860	Shaft	Ø 30 x 95	1
12	F27406	Bracket	40 x 40 x 25 x 2,5	1
13	F26857	Bracket	69 x 22,5 x 22 x 2,5	1
14	F20685	Hexagonal Bolt	DIN933 M 6 x 10	6
15	F28836	Spring	d 2 x Ø 22 x 70,8	2
