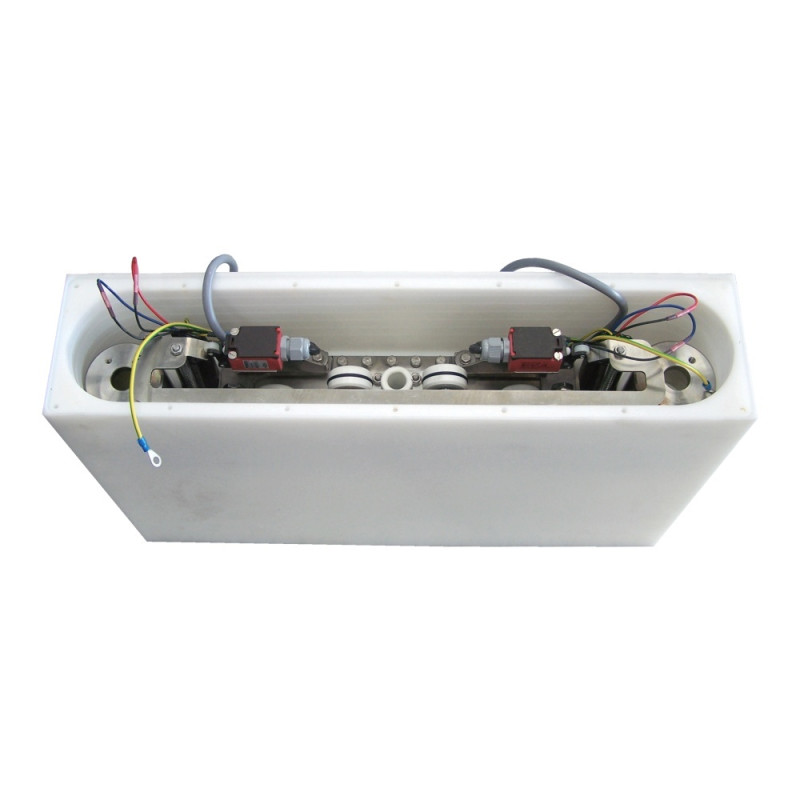

Block Exploded View IR56 No. 612 and Higher
Type: 105885et
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2264
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2264
Block Exploded View for ruhle injector IR56 No. 612 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 101102 | Block | IR 28/56 | 1 |
 |
2 | F443747 | Switch unit | IR 28/56 | 1 |
 |
3 | F443746 | Switch unit | IR 28/56 | 1 |
 |
4 | F240284 | plate / sheet | 460 x 63,5 x 2,5 | 1 |
 |
5 | F20258 | Washer | DIN125 A 6,4 | 1 |
 |
6 | F24031 | Spring lock washer | DIN127 B 6 | 9 |
 |
7 | F21047 | Hexagonal bolt | DIN933 M 6 x 12 | 1 |
 |
8 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 8 |
|
9 | F24522 | Hexagonal bolt | DIN933 M 6 x 25 | 8 |
 |
10 | F29178 | Bracket | 90 x 88 x 64 | 1 |
 |
11 | F29177 | Bracket | 90 x 88 x 64 | 1 |
 |
12 | F25987 | Cylinder head screw | DIN84 M 5 x 30 | 4 |
 |
13 | F25303 | Cable | ÖZ-J 7x1.0 mm² | 3.4 |
|
14 | F25303 | Cable | ÖZ-J 7x1.0 mm² | 5.2 |
 |
15 | F29040 | Limit switch | Ti2-SU1Z Hw | 1 |
 |
16 | F20948 | Cable gland | M 16 x 1.5 | 1 |
