Block Exploded View 1 Ruhle IR56 Facelift No. 612 and Higher
Type: 101102
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2265
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2265

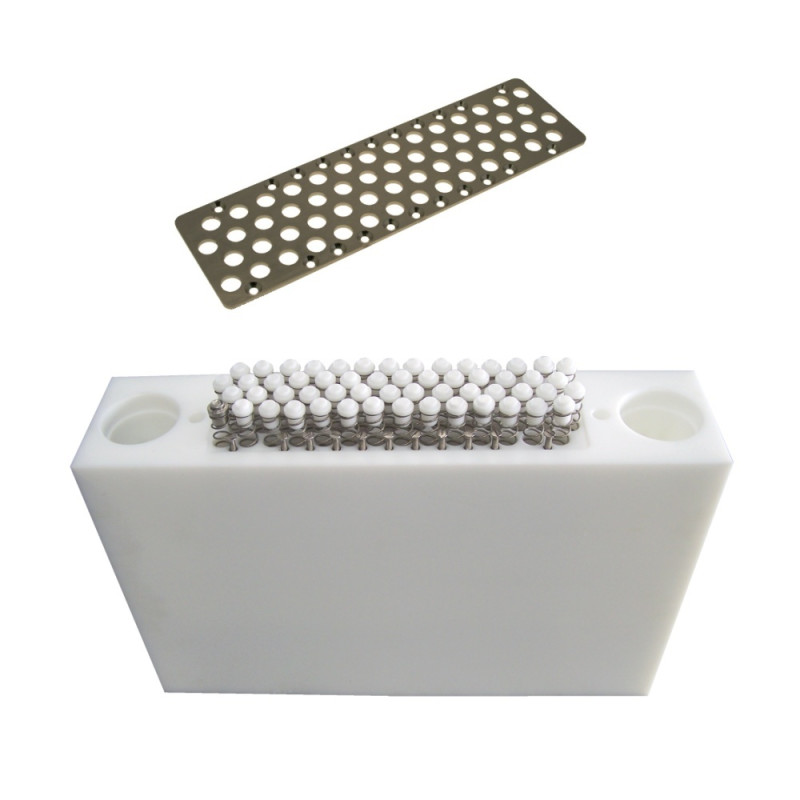

Block Exploded View 1 for IR 56 Injector No. 612 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F240286 | Block | 600 x 384 x 140 | 1 |
 |
2 | F29102 | Threaded insert | M 6 x M10x1,5 x 14 | 44 |
 |
3 | F29173 | plate / sheet | 349,6 x 99,6 x 4 | 1 |
 |
4 | F23688 | Countersunk bolt | DIN963 M 6 x 20 | 22 |
 |
5 | F20114 | Pressure spring | d1.8 x De19 x 285 | 56 |
 |
6 | F29306 | bolt | Ø 19,5 x 25 | 55 |
 |
7 | F251523 | bolt | Ø 19,5 x 25 | 1 |
 |
8 | F446413 | plate / sheet | IR 28/56 | 1 |
 |
9 | F24031 | Spring lock washer | DIN127 B 6 | 14 |
 |
10 | F26033 | Hexagonal bolt | DIN933 M 6 x 20 | 14 |
 |
11 | F29304 | Flange | Ø 17,2 x Ø 65 x 52 | 1 |
 |
12 | F20258 | Washer | DIN125 A 6,4 | 4 |
 |
13 | F20203 | Hexagonal nut | DIN934 M 6 | 4 |
