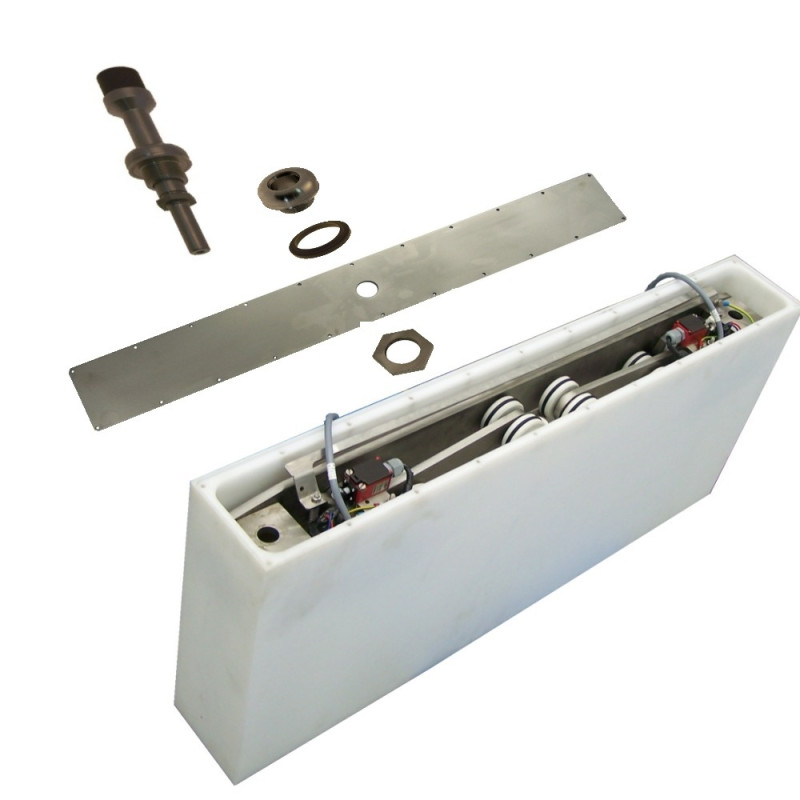

Block Complete Ruhle Injector IR112

Type: F450266
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2110

* Block Complete IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Block Complete Ruhle Injector IR112

Type: F450266
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2110

* Block Complete IR 112:
--F250267 Block
--F29102 Threaded insert
--F450276 Cover
--F26033 Hexagonal bolt
--F29304 Flange
--F20258 Washer
--F20258 Washer
--F20203 Hexagonal nut
--F22369 Pressure spring
--F29306 Bolt
--F251523 Bolt
--F250269 Plate / Sheet
--F20264 Countersunk bolt
--104573 Switch unit
--104574 Switch unit
--F450721 Bracket
--F450720 Bracket
--F21035 Disc
--F24031 Spring lock washer
--F24031 Spring lock washer
--F24522 Hexagonal bolt
--F252505 Plate / Sheet
--F20203 Hexagonal nut
--104575 Plate - pulse generator
--F450425 Cover
--F29101 Raised countersunk head screw

Block Complete Ruhle Injector IR112

Pos No.	Part No.	Description	Add Info	Required
1	F250267	Block	956 x 424 x 140	1
2	F29102	Threaded insert	M 6 x M10x1,5 x 14	112
3	F450276	Cover	IR 112	1
4	F24031	Spring lock washer	DIN127 B 6	49
5	F26033	Hexagonal bolt	DIN933 M 6 x 20	49
6	F29304	Flange	Ø 17,2 x Ø 65 x 52	1
7	F20258	Washer	DIN125 A 6,4	4
8	F20203	Hexagonal nut	DIN934 M 6	4
9	F22369	Pressure spring	2.0 x 19 x 350	112
10	F29306	Bolt	Ø 19,5 x 25	111
11	F251523	Bolt	Ø 19,5 x 25	1
12	F250269	Plate / Sheet	685,6 x 99,6 x 4	1
13	F20264	Countersunk bolt	DIN963 M 6 x 16	56
14	104573	Switch unit	IR 112	1
15	104574	Switch unit	IR 112	1
16	F450721	Bracket	IR 112	1
17	F450720	Bracket	IR 112	1
18	F21035	Disc	Ø 6,5 x Ø 20 x 2	6
19	F24031	Spring lock washer	DIN127 B 6	8
20	F24522	Hexagonal bolt	DIN933 M 6 x 25	8
21	F252505	Plate / Sheet	756 x 56,5 x 29 x 2,5	1
22	F20258	Washer	DIN125 A 6,4	2
23	F20203	Hexagonal nut	DIN934 M 6	2
24	104575	Plate - pulse generator	IR 112	1
25	F450425	Cover	IR 112	1
26	F29101	Raised countersunk head screw	DIN95 M 6 x 25 conical	22
