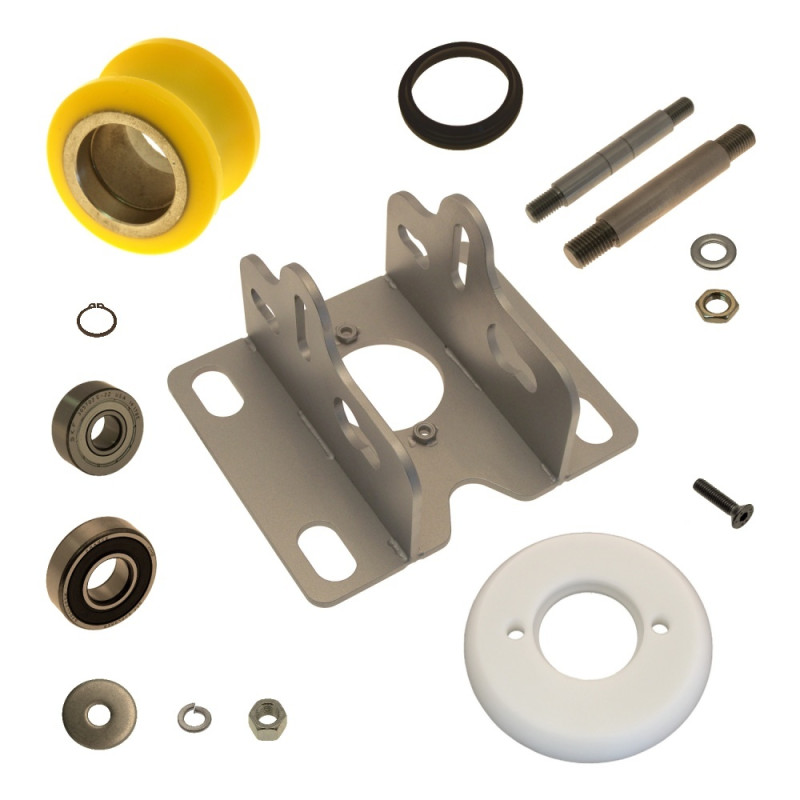

Bearing Complete SR3 Dicer No. 70 and Higher

Type: F41877
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1046

Note: Shipping to be Determined.

* Bearing Complete SR3 Lifting unit for No. 70 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Bearing Complete SR3 Dicer No. 70 and Higher

Type: F41877
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1046

Note: Shipping to be Determined.

* Bearing Complete SR3 Lifting unit for No. 70 and higher:
--F41882 Plate
-- F22907 Disc
--F20210 Spring lock washer
-- F20204 Hexagonal nut
--F28580 Ring
--F28582 Countersunk bolt
--F28578 Shaft
--F41881a Wheel
--F240891 Grooved ball bearing
--F23713 Washer
--F23799 Hexagonal nut
--F28577 Shaft
--F20540 Roller
--F20536 Locking ring
--F26379 Spring lock washer
--F20147 Hexagonal nut
--F20202 Washer
--F24015 Spring lock washer

Bearing Complete for Ruhle SR3 Dicer

Pos No.	Part No.	Description	Add Info	Required
1	F41882	Plate	SR 3	1
2	F22907	Disc	Ø 10,5 x Ø 35 x 3	4
3	F20210	Spring lock washer	DIN127 B 12	4
4	F20204	Hexagonal nut	DIN934 M 12	4
5	F28580	Ring	Ø 51 x Ø 130 x 8	1
6	F28582	Countersunk bolt	DIN7991 M 6 x 25	2
7	F28578	Shaft	Ø 20 x 128	1
8	F41881a	Wheel	SR 3	1
9	F240891	Grooved ball bearing	DIN625 - 6204 2 RS	2
10	F23713	Washer	DIN125 A 17	2
11	F23799	Hexagonal nut	DIN439 M 16	2
12	F28577	Shaft	Ø 15 x 120	1
13	F20540	Roller	305702 C-2Z	1
14	F20536	Locking ring	DIN471 Ø 15 x 1	2
15	F26379	Spring lock washer	DIN127 B 10	4
16	F20147	Hexagonal nut	DIN934 M 10	4
17	F20202	Washer	DIN125 A 13	4
18	F24015	Spring lock washer	DIN127 B 16	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Bearing Complete for Ruhle SR3 Dicer

Pos No.	Part No.	Description	Add Info	Required
1	F41882	Plate	SR 3	1
2	F22907	Disc	Ø 10,5 x Ø 35 x 3	4
3	F20210	Spring lock washer	DIN127 B 12	4
4	F20204	Hexagonal nut	DIN934 M 12	4
5	F28580	Ring	Ø 51 x Ø 130 x 8	1
6	F28582	Countersunk bolt	DIN7991 M 6 x 25	2
7	F28578	Shaft	Ø 20 x 128	1
8	F41881a	Wheel	SR 3	1
9	F240891	Grooved ball bearing	DIN625 - 6204 2 RS	2
10	F23713	Washer	DIN125 A 17	2
11	F23799	Hexagonal nut	DIN439 M 16	2
12	F28577	Shaft	Ø 15 x 120	1
13	F20540	Roller	305702 C-2Z	1
14	F20536	Locking ring	DIN471 Ø 15 x 1	2
15	F26379	Spring lock washer	DIN127 B 10	4
16	F20147	Hexagonal nut	DIN934 M 10	4
17	F20202	Washer	DIN125 A 13	4
18	F24015	Spring lock washer	DIN127 B 16	2
