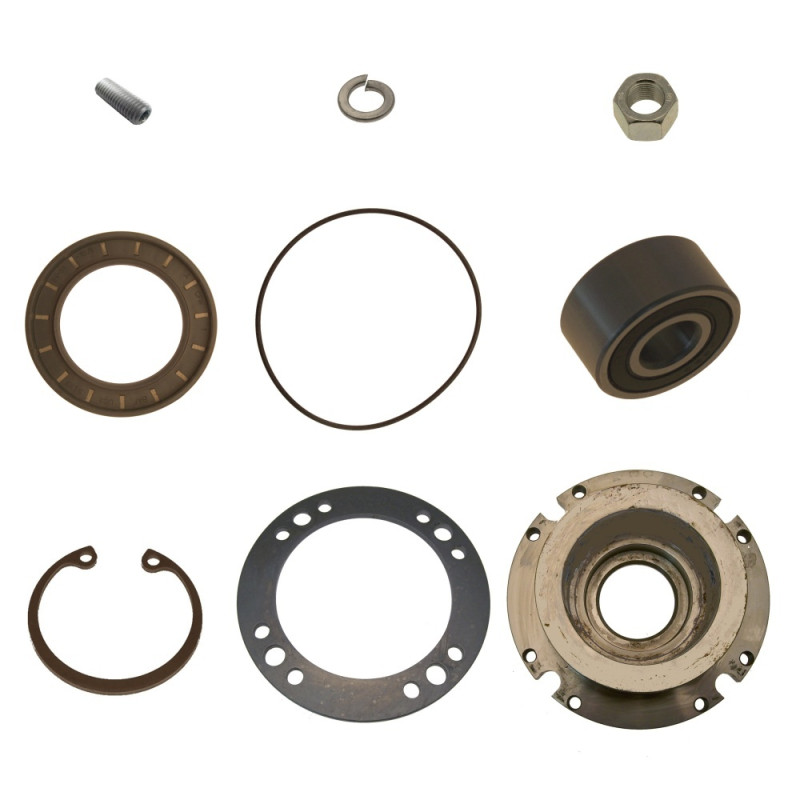

Bearing Exploded View - F450536

Type: F450536
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2210

* Bearing Exploded View 2 IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Bearing Exploded View - F450536

Type: F450536
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2210

* Bearing Exploded View 2 IR 112:
--F250537 Flange
--F249664 Tapered ball bearing
--F252633 Locking ring
--F252627 Radial shaft seal
--F250136 O-ring
--100913 Threaded pin
--F250504 Disc
--F20210 Spring lock washer
--F20204 Hexagonal nut

Bearing Exploded View for IR112 Injector

Pos No.	Part No.	Description	Add. Info	Required
1	F250537	Flange	54.5 x 150 x 60	1
2	F249664	Tapered ball bearing	DIN628 - 3210 2RS	1
3	F252633	Locking ring	DIN472 90 x 3	1
4	F252627	Radial Shaft seal	54 x 81 x 10/8	2
5	F250136	O-ring	120 x 3	1
6	100913	Threaded pin	DIN915 M 8 x 16	8
7	F250504	Disc	115 x 165 x 5	1
8	F20210	Spring Lock Washer	DIN 127 B 12	4
9	F20204	Hexagonal Nut	DIN934 M 12	4

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Bearing Exploded View for IR112 Injector

Pos No.	Part No.	Description	Add. Info	Required
1	F250537	Flange	54.5 x 150 x 60	1
2	F249664	Tapered ball bearing	DIN628 - 3210 2RS	1
3	F252633	Locking ring	DIN472 90 x 3	1
4	F252627	Radial Shaft seal	54 x 81 x 10/8	2
5	F250136	O-ring	120 x 3	1
6	100913	Threaded pin	DIN915 M 8 x 16	8
7	F250504	Disc	115 x 165 x 5	1
8	F20210	Spring Lock Washer	DIN 127 B 12	4
9	F20204	Hexagonal Nut	DIN934 M 12	4
