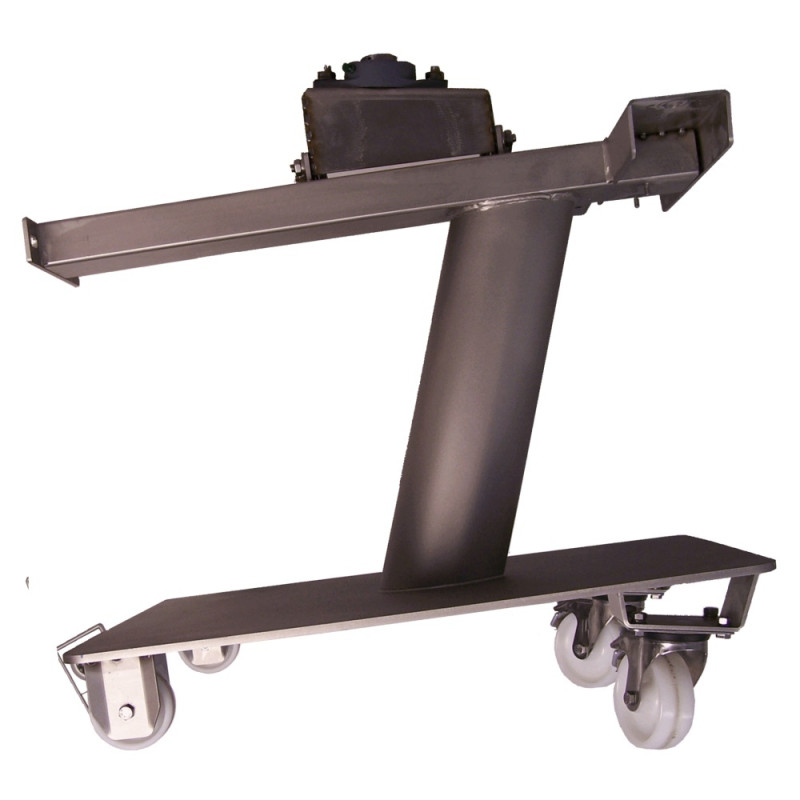

Base Assembly

Type: F40055
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1215

Note: Shipping to be Determined.

* Base Assembly SR1-Turbo:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Base Assembly

Type: F40055
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1215

Note: Shipping to be Determined.

* Base Assembly SR1-Turbo:
--101550 Base
--102689 Bearing bridge
--F27549 wheel
-- F252119 Tube
-- F20949 Hexagonal bolt
--F20259 Hexagonal nut
-- F21260 Spring lock washer
--F20414 Guide roller
--F21281 Hexagonal bolt
--F20323 Hexagonal bolt
-- F24901 Washer

Base Assembly for SR1 Turbo Dicer

Pos No.	Part no.	Description	Add Info	Required
1	101550	Base	SR 1 / SR 1 Turbo	1
2	102689	Bearing bridge	SR 1 / SR 1 Turbo	1
3	F27549	wheel	Ø 80 x 38	2
4	F252119	Tube	Ø 12 x 1,5 x 41	2
5	F20949	Hexagonal bolt	DIN933 M 8 x 55	2
6	F20259	Hexagonal nut	DIN934 M 8	10
7	F21260	Spring lock washer	DIN127 B 8	10
8	F20414	Guide roller	LEX-PO 100	2
9	F21281	Hexagonal bolt	DIN933 M 8 x 16	8
10	F20323	Hexagonal bolt	DIN933 M12 x 25	4
11	F24901	Washer	Ø 12,5 x Ø 35 x 3	4
