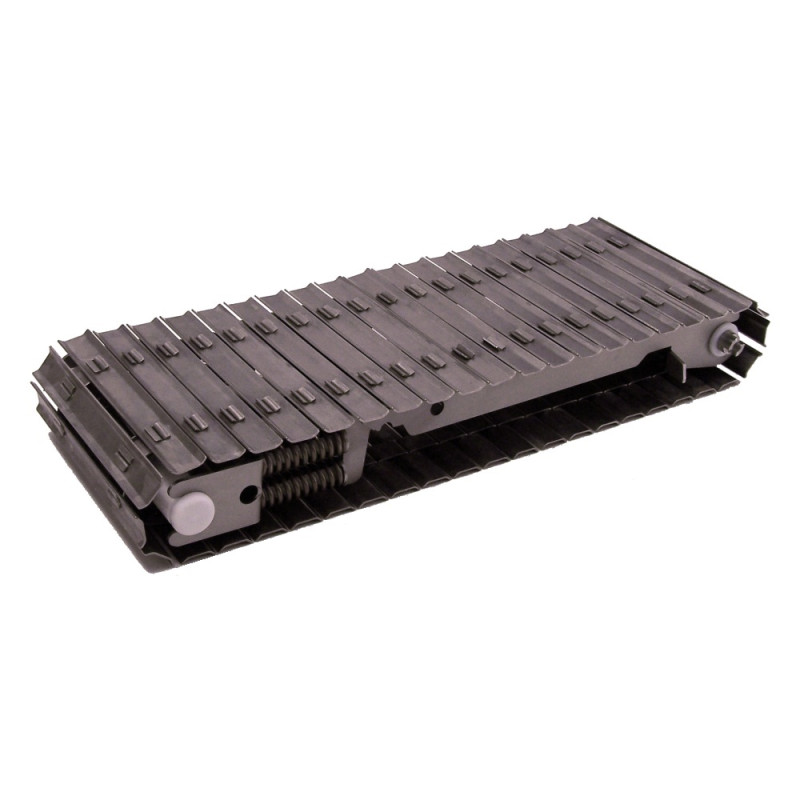

Band Complete PR8 No. 2383 and Higher

Type: F41930
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1905

* Band Complete PR 8 No 2383 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Band Complete PR8 No. 2383 and Higher

Type: F41930
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1905

* Band Complete PR 8 No 2383 and higher:
--F457745 Lagerung
--F21267 Scheibe
--F28682 Halter
--F21278 Druckfeder
--F20071 Welle
--F40166 Scheibe
--F21281 Sechskantschraube
--F21848 Buchse
--F21848 Buchse
--F27700 Buchse
--F20069 Welle
--F41931 Scheibe
--F40013 Band

Conveyor Belt Complete for PR8 Injection Machine No. 2383 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F457745	Lagerung	PR 8 - 15	1
2	F21267	Disc	Ø 18,5 x Ø 28 x 3	16
3	F27848	Bushing	Ø 25,2 x Ø 40 x 79,5	2
4	F28682	Holder	249 x 95 x 67 x 4	1
5	F21278	Pressure Spring	5,0 x 29 x 90	4
6	F20071	Shaft	Ø 25 x 250	1
7	F40166	Disc	PR 8 - 15	24
8	F21281	Hexagonal Bolt	DIN933 M 8 x 16	1
9	F21848	Bushing	Ø 25,2 x Ø 40 x 57,5	1
10	F27700	Bushing	Ø 25,2 x Ø 40 x 78,5	1
11	F20069	Shaft	Ø 25 x 253	1
12	F41931	Disc	PR 8 - 15	2
13	F40013	Conveyor Belt	PR 8 - 15	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Conveyor Belt Complete for PR8 Injection Machine No. 2383 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F457745	Lagerung	PR 8 - 15	1
2	F21267	Disc	Ø 18,5 x Ø 28 x 3	16
3	F27848	Bushing	Ø 25,2 x Ø 40 x 79,5	2
4	F28682	Holder	249 x 95 x 67 x 4	1
5	F21278	Pressure Spring	5,0 x 29 x 90	4
6	F20071	Shaft	Ø 25 x 250	1
7	F40166	Disc	PR 8 - 15	24
8	F21281	Hexagonal Bolt	DIN933 M 8 x 16	1
9	F21848	Bushing	Ø 25,2 x Ø 40 x 57,5	1
10	F27700	Bushing	Ø 25,2 x Ø 40 x 78,5	1
11	F20069	Shaft	Ø 25 x 253	1
12	F41931	Disc	PR 8 - 15	2
13	F40013	Conveyor Belt	PR 8 - 15	1
