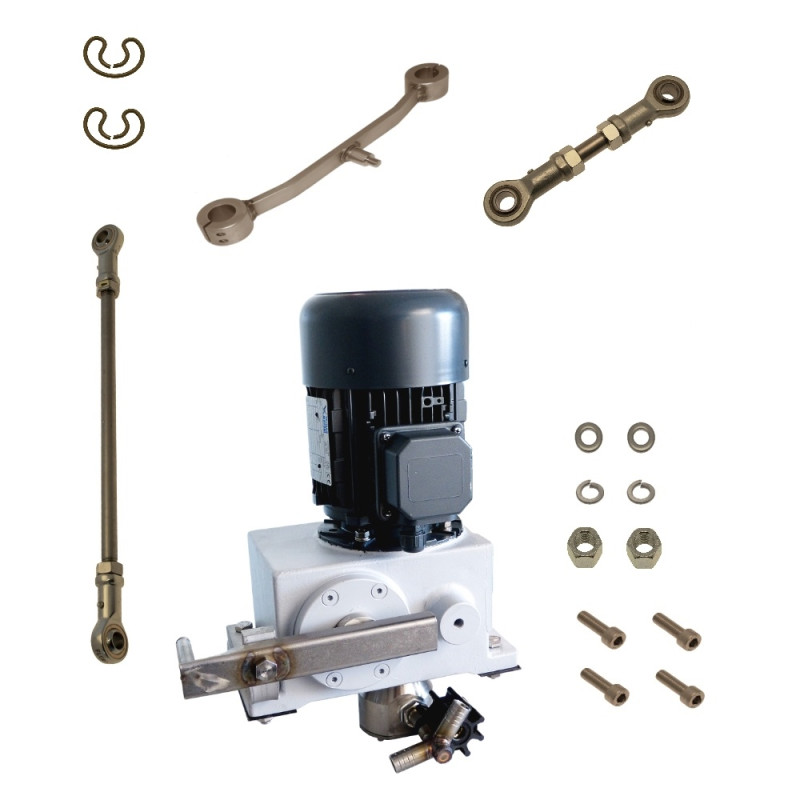

Antrieb Assembly No. 2383 and higher

Type: 107007
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1893

* Antrieb Assembly PR 8 No 2383 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Antrieb Assembly No. 2383 and higher

Type: 107007
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1893

* Antrieb Assembly PR 8 No 2383 and higher:
--F41736 Getriebe
--F457727 Pleuelstange
--F41660 Traverse
--F457729 Pleuelstange
--F21262 Ringfeder
--F20202 U-Scheibe
--F20210 Federring
--F20204 Sechskantmutter
--F22621 Zylinderschraube

Antrieb Assembly for PR8 No. 2383 and higher

Pos No.	Part No.	Description	Add Info	Required
1	F41736	Getriebe	PR 8 - 15	1
2	F457727	Pleuelstange	PR 8 - 15	1
3	F41660	Traverse	PR 8 - 15	1
4	F457729	Pleuelstange	PR 8 - 20	1
5	F21262	Ringfeder	Ø 12 x Ø 30 x 2,2	2
6	F20202	U-Scheibe	DIN125 A 13	2
7	F20210	Federring	DIN127 A 12	2
8	F20204	Sechskantmutter	DIN934 M 12	2
9	F22621	Zylinderschraube	DIN912 M 8 x 25	4
